Delivering a Stable, High-Quality Coating Process from Unwinding to Rewinding

A coating machine may appear to simply guide a substrate from the unwinding section to the rewinding section. However, what truly determines coating quality and production stability is the precision and seamless coordination of every module across the entire line. From tension control, coating precision, and stable slurry/fluid supply, to drying efficiency and winding quality, every step directly impacts the final product.


1. Unwinding: Stable Tension Is the First Step to High Quality

As the roll diameter decreases, unwinding tension must be dynamically compensated in real time. Equipped with closed-loop tension control and an automatic web guiding system (EPC/LPC), the line ensures that diverse substrates—including films, paper, and aluminum foils—enter the coating zone with superior stability, minimizing web wandering, wrinkling, and stretch deformation.

2. Coating: Selecting the Optimal Process Tailored to Material and Application Needs

The coating head is the core of the entire system. Different applications demand specialized technologies:

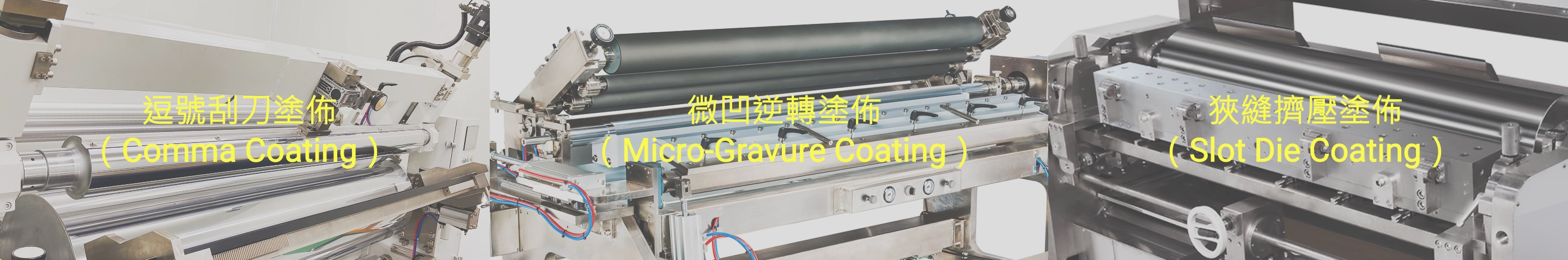

• Comma Coating: Ideal for high-viscosity formulations and medium-to-high coating weights.
• Micro Gravure: Best suited for ultra-thin coatings requiring exceptional uniformity.
• Slot Die: Designed for high-precision, quantitative pre-metered coating on high-value-added products.

What truly matters is not identifying which coating method is "best," but selecting the optimal solution based on fluid viscosity, target coating weight, line speed, and product specifications.

3. Fluid Supply System: The Invisible Key Behind Consistent Coating

Even with the most precise coating head, unstable supply pressure, fluctuating flow rates, or contamination can lead to variations in coating thickness, pinholes, and surface defects. A complete fluid feeding system integrates storage, precision pumps, filtration, circulation, and degassing modules to ensure coating material is delivered to the coating head with consistent stability and high purity.

4. Drying: Far More Than Just Solvent Evaporation

The drying system directly determines surface topography and final physical performance. Depending on product requirements, hot air, infrared (IR), or combined drying systems can be configured, using multi-zone temperature control to establish the optimal drying curve. For solvent-based processes, exhaust management, LEL (Lower Explosive Limit) solvent concentration monitoring, and safety interlocks are critically engineered.

5. Rewinding: The Final Quality Safeguard

As roll diameter continuously builds up, tension must be adjusted synchronously. With closed-loop tension and Taper Tension control, issues such as web wrinkling, uneven edge alignment, core crushing, and loose winding are effectively resolved, ensuring the superior coating quality achieved upstream is fully preserved.


From Standalone Machinery to Complete Process Integration

High-quality coating is never achieved by a single high-precision component alone; it is the result of seamless synergy among unwinding, coating, feeding, drying, cooling, and rewinding.
Starting from your specific product requirements, we engineer the optimal coating equipment and turnkey line solutions tailored to your substrate properties, coating fluids, wet/dry laydown, production speeds, drying parameters, and quality standards.

From unwinding to rewinding, every single module is engineered for uncompromising quality.
