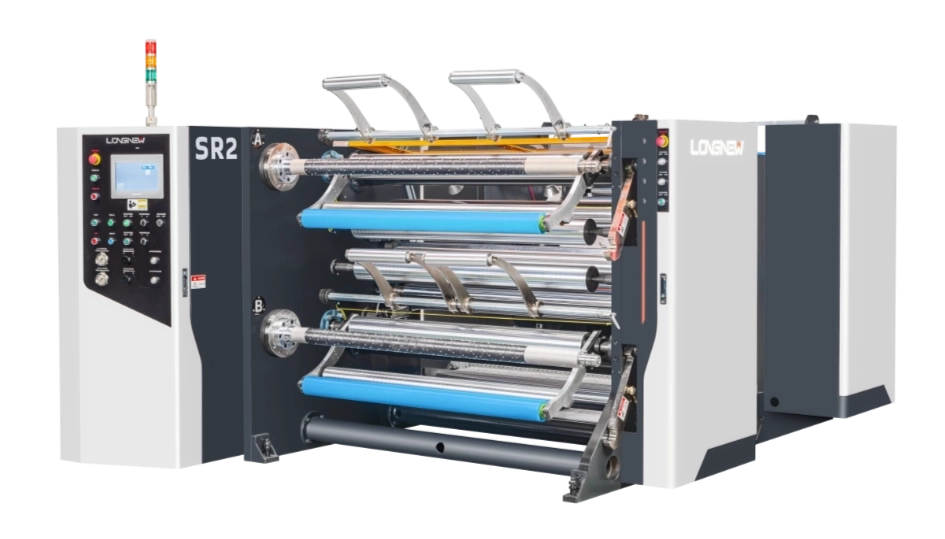

Slitting Machine (SR1/SR2)
SR1/SR2
-
- Suitable for various types of printed and laminated materials
- Easy 3" & 6" changeover at unwinding
- 3”differential air shafts equipped at rewinding side with pre-set taper tension to ensure top quality of rewinding
- Optional 6" expansion air shafts with load cell type of tension control are also available for wide web rewinding jobs
- Edge trimming rewinder is available as an option
- Shear cutter can be easily added as an option
影片介紹 -
Model SR1/SR2 Max. web width 1000 mm / 1300 mm Max. machine speed SR1-300 m /min; SR2-400m/min Slitting speed SR1-300 m /min; SR2-400m/min Max. dia. of unwinder 800 mm / 1000 (option) Max. dia of rewinder 600 mm Min. slitting width 50 mm Min. slitting width (option) 25 / 30 / 40mm -
01 放料座
- 3”及6”管皆適用
- 無軸放料，油壓升降，方便材料裝卸
- 方便的調節把手，適應各種材料寬度
- 磁粉剎車
- 高品質（德製）LPC，可追蹤邊及線
02 分條單元- 平刀（標準）及圓刀（選配）皆適用
- 廢邊吹出裝置
- 廢邊捲取機（選配）
03 收料座- 鐳射紙管定位裝置（選配）
- 配備兩支3”差速軸，錐度張力控制
- 可用6”氣壓軸（選配）
- 全寬幅收料壓輪，達成平順的收料表現
- 分條成品下料裝置
-
Features
- Suitable for various types of printed and laminated materials
- Easy 3" & 6" changeover at unwinding
- 3”differential air shafts equipped at rewinding side with pre-set taper tension to ensure top quality of rewinding
- Optional 6" expansion air shafts with load cell type of tension control are also available for wide web rewinding jobs
- Edge trimming rewinder is available as an option
- Shear cutter can be easily added as an option
影片介紹 -
Specifications
Model SR1/SR2 Max. web width 1000 mm / 1300 mm Max. machine speed SR1-300 m /min; SR2-400m/min Slitting speed SR1-300 m /min; SR2-400m/min Max. dia. of unwinder 800 mm / 1000 (option) Max. dia of rewinder 600 mm Min. slitting width 50 mm Min. slitting width (option) 25 / 30 / 40mm -
Detailed description01 放料座
- 3”及6”管皆適用
- 無軸放料，油壓升降，方便材料裝卸
- 方便的調節把手，適應各種材料寬度
- 磁粉剎車
- 高品質（德製）LPC，可追蹤邊及線
02 分條單元- 平刀（標準）及圓刀（選配）皆適用
- 廢邊吹出裝置
- 廢邊捲取機（選配）
03 收料座- 鐳射紙管定位裝置（選配）
- 配備兩支3”差速軸，錐度張力控制
- 可用6”氣壓軸（選配）
- 全寬幅收料壓輪，達成平順的收料表現
- 分條成品下料裝置
